20 Years of Craftsmanship: Conquering the Fortress of High Requirements for Medical and Military Molds
The Current Situation of High Requirements for Medical and Military Molds
This article expounds on the importance of medical and military molds in terms of product quality, safety, and other aspects, and introduces the strict requirements they face, such as high precision and high stability.
Analysis of Strict Standards for Medical Molds
(I) Material Selection
It emphasizes that materials for medical molds must possess biocompatibility, corrosion resistance, and other properties. Taking S136 stainless steel as an example, it explains its applicability in different medical scenarios. For instance, S136 stainless steel is widely used in the production of molds for medical devices like syringes and surgical instruments due to its excellent corrosion resistance, which can prevent the material from reacting with medical fluids and ensure the safety of medical products.
(II) Precision Control
This section lists the precision data of molds for different medical consumables. For example, the dimensional tolerance requirement for syringe molds is usually within ±0.005mm, and for cardiovascular stent molds, it is even stricter, with a dimensional tolerance of less than ±0.002mm. These data fully demonstrate the extreme pursuit of precision in medical mold manufacturing, as even a tiny deviation may affect the normal use of medical devices and pose a threat to patients’ lives.
(III) Production Environment
It explains the reason why medical mold production needs to be carried out in a Class 10,000 cleanroom and the importance of controlling temperature and humidity. In a Class 10,000 cleanroom, the number of particles per cubic meter is strictly controlled, which can prevent dust, bacteria, and other impurities from adhering to the mold surface and affecting the quality of medical products. At the same time, controlling the temperature (usually between 22°C and 25°C) and humidity (between 45% and 65%) can ensure the stability of the mold during the manufacturing process and avoid dimensional changes caused by environmental factors.
Analysis of Strict Indicators for Military Molds
(I) Material Characteristics
This part introduces that materials for military molds need to have high hardness, high strength, fatigue resistance, and other properties. For example, H13 hot work die steel is commonly used in the production of military molds for aerospace components. It has high hardness (up to HRC 50-55 after heat treatment) and excellent fatigue resistance, which can withstand the high-temperature and high-pressure environment during the molding process of military products and ensure the service life of the mold. Another example is DC53 cold work die steel, which is suitable for manufacturing molds for military parts that require high precision and wear resistance, such as missile components.
(II) Design Process
It elaborates on the strict control in each stage of the military mold design process, from demand analysis to document filing. In the demand analysis stage, the design team will conduct in-depth communication with the military customer to fully understand the performance requirements, usage environment, and production batch of the military product, so as to determine the design direction of the mold. In the technical review stage, experts from various fields (including mold design, material science, and manufacturing technology) will conduct a comprehensive review of the mold design plan to ensure its feasibility and rationality. In addition, simulation analysis is also an important part of the military mold design process. By using professional simulation software, the design team can predict the molding process of the military product, identify potential problems in advance, and optimize the mold design.
(III) Quality Inspection
This section explains the quality inspection methods and standards for military molds. For example, finite element analysis is used to predict the service life of the mold. By establishing a finite element model of the mold, the stress and strain of the mold during the working process can be calculated, and the service life of the mold can be predicted based on the material properties and fatigue curves. In addition, the dimensional and geometric tolerance inspection of military molds is also very strict. Advanced testing equipment such as coordinate measuring machines (CMM) with a measurement accuracy of up to 0.001mm is used to inspect the key dimensions and geometric tolerances of the mold, ensuring that the mold meets the design requirements and military standards.
Solutions Backed by 20 Years of Industry Experience
(I) Technological Advantages from Experience Accumulation
With 20 years of experience in the mold industry, our factory has mastered unique mold design skills and processing technologies. For example, in the design of complex medical molds, we can optimize the mold structure based on our rich experience to improve the molding efficiency and product quality of medical devices. In the processing of military molds, we have developed a set of special processing techniques for difficult-to-machine materials, which can improve the processing accuracy and surface quality of the mold and ensure that the mold meets the strict requirements of military products.
(II) Support from a Professional Team
Our team consists of professionals with rich experience in mold design, manufacturing, and quality inspection. Many team members have been engaged in the mold industry for more than 10 years and have in-depth knowledge and understanding of the standards and requirements of medical and military molds. In the process of mold production, the professional team can provide technical support and guidance at any time, solve various technical problems encountered in the production process in a timely manner, and ensure the smooth progress of the mold production.
(III) Assistance from Advanced Equipment

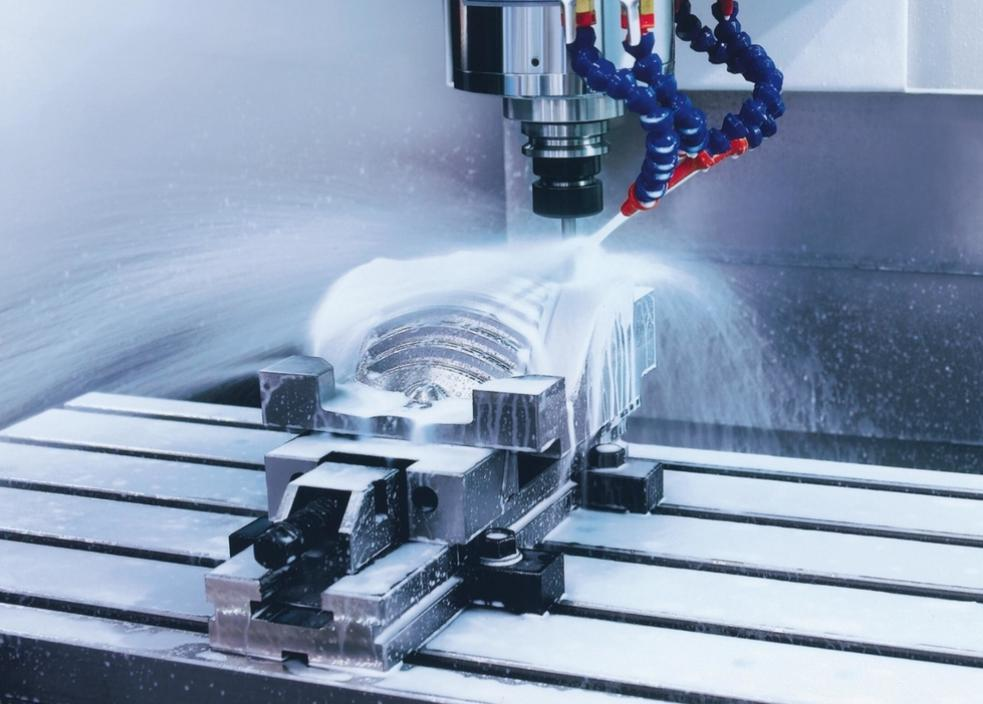

Our factory is equipped with a full set of high-precision processing equipment and testing equipment. The processing equipment includes high-speed CNC milling machines, EDM machines, and wire-cutting machines, which can realize high-precision processing of mold parts. The testing equipment includes CMM, hardness testers, and fatigue testing machines, which can conduct comprehensive quality inspection of the mold from dimensions, hardness, and service life to ensure the quality and performance of the mold.
Showcase of Successful Cases
Medical Mold Case
We once undertook a project to develop a mold for a new type of insulin pen. The customer had very strict requirements on the precision and surface quality of the mold, as the insulin pen needs to accurately control the dosage of insulin. Faced with this challenge, our team used the unique design skills and processing technologies accumulated over 20 years to optimize the mold structure and processing parameters. Finally, the mold we developed met the customer’s requirements, and the insulin pen produced by the mold had a dosage accuracy of ±0.01ml, which was highly praised by the customer.
Military Mold Case
We also have successful experience in the field of military molds. We once cooperated with a military enterprise to develop a mold for an aerospace engine component. The component has a complex structure and requires high temperature and pressure resistance. Our team conducted in-depth research on the material properties and molding process of the component, and used advanced simulation analysis software to optimize the mold design. During the manufacturing process, we used high-precision processing equipment and strict quality inspection standards to ensure the quality of the mold. The final mold successfully passed the military acceptance, and the aerospace engine component produced by the mold met the performance requirements of the military.
Reasons to Choose Us
In summary, our factory has obvious advantages in meeting the high requirements of medical and military molds. With 20 years of industry experience, a professional team, and advanced equipment, we can provide customers with high-quality mold products and professional technical services. Whether you are a medical device manufacturer or a military enterprise, choosing us means choosing reliability, quality, and efficiency. We look forward to cooperating with you and creating a better future together.
